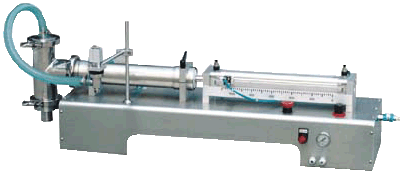

Liquid Filling Machine Single / double DY/SYF
Main Purpose:
. The filling machine models applicable to Chinese medicine, Japan, food, pesticides and special industries, and is the ideal liquid for filling equipment.
Technical Parameters:
. Voltage: 220/110 V 50/60Hz
. Power: 10 W
. Rated pressure :0.4-0.6 MPa
. Filling speed :10-30 bottles / minute
. Filling accuracy: ± 1
Model |
DY60 |
DY125 |
DY250 |
DY500 |
DY1000 |
DY2500 |
DY5000 |
Filling may be scope(ml) |
5-60 |
10-125 |
25-250 |
50-500 |
100-1000 |
250-2500 |
500-5000 |
Filling of the best(ml) |
25-60 |
50-125 |
100-250 |
200-500 |
300-1000 |
500-2500 |
1000-5000 |
Principle Features:
. DY series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with one-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.
. Filling Mentou used Drip-filling and lifting devices
|
